Enw'r cebl |

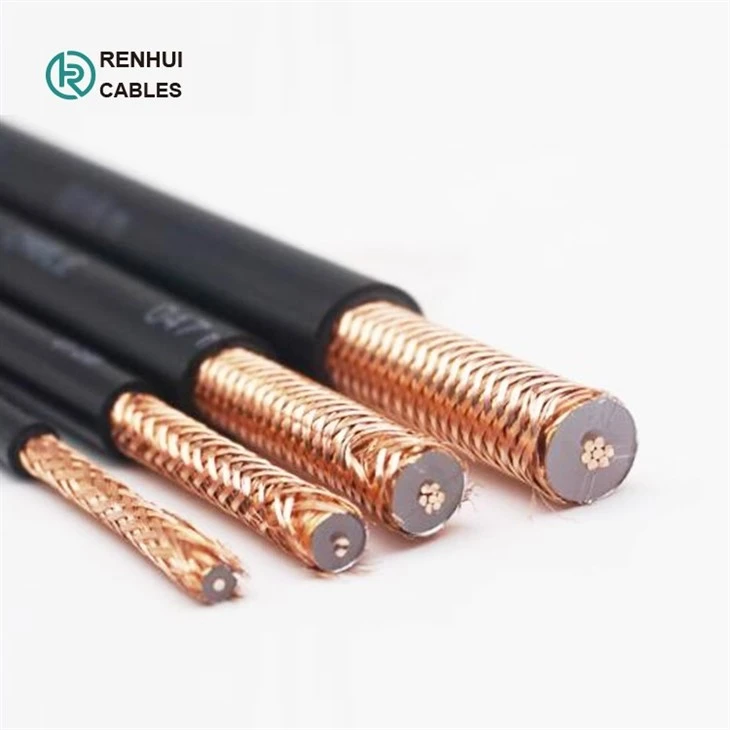

Ceblau cyfechelog wedi'u hinswleiddio â polyethylen copr |
||||||||
|
Math o gebl |
RG174 |
Safonol |
MIL-C-17 |
||||||
|
Diagram 1.Structure o'r cynnyrch. |
|||||||||
|
|
|||||||||
|
2.Size y cynnyrch |
|||||||||
|
Nac ydw. |
Eitem |
strwythur |
deunydd |
lliw |
|||||
|
1 |
arweinydd |
7/}0.16±0.01mm |
copr noeth |
Melyn |
|||||
|
2 |
inswleiddio |
1.52±0.01mm |
Addysg Gorfforol |
Gwyn |
|||||
|
3 |
gwifren plethedig |
80*0.1mm |
Copr noeth |
melyn |
|||||
|
4 |
Siaced |
2.80±0.1mm |
PVC |
Du |
|||||
|
5 |
marcio |
RG174 |
|||||||
|
3.Electrical ffisegol a phriodweddau cynnyrch |
|||||||||
|
Eitem |
Uned |
Gwerth |
|||||||
|
Cynhwysedd |
pF/m |
100±5 |
|||||||
|
rhwystriant |
Ω |
50±2 |
|||||||
|
Cymhareb cyflymder |
cant |
66 |
|||||||
|
Radiws plygu |
mm |
14 |
|||||||
|
Foltedd uchaf |
VMS |
1500 |
|||||||
|
Amlder mwyaf |
MHZ |
3000 |
|||||||
|
Cwmpas tymheredd |
gradd |
-20~ plws 80 |
|||||||
|
Cyson gwanhad ar 20 gradd (Uchafswm.) |
200MHz |
dB/100m |
39 |
||||||
|
400MHz |
dB/100m |
58 |
|||||||
|
900MHz |
dB/100m |
90 |
|||||||
|
1500MHz |
dB/100m |
117 |
|||||||
|
1800MHz |
dB/100m |
128 |
|||||||
|
2000MHz |
dB/100m |
139 |
|||||||
|
2500MHz |
dB/100m |
156 |
|||||||
|
Pecyn |
15000m/drwm, Drwm pren allforio. |
||||||||
